Split Type Ultrasonic Level Transmitter

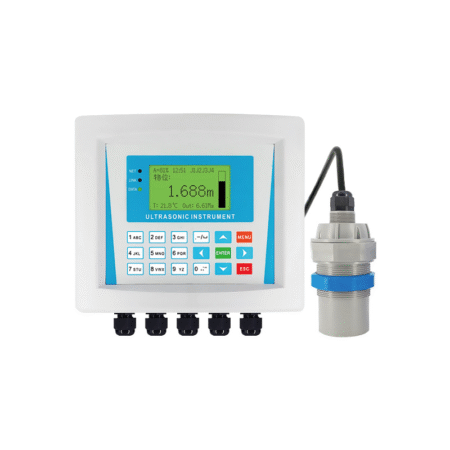

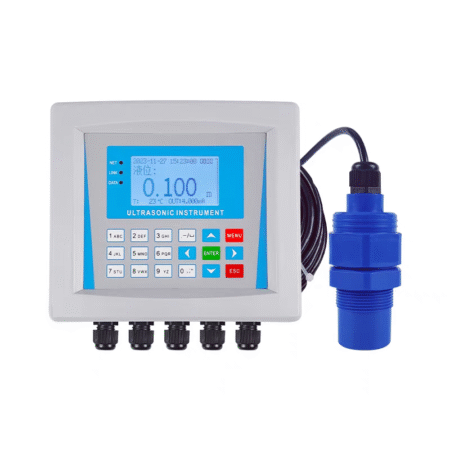

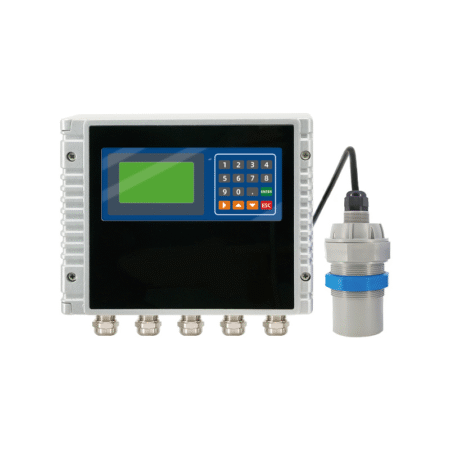

The split-type ultrasonic level transmitter is available with a range of sensor options to suit different environments, including standard IP65 sensors, waterproof IP68 sensors, and durable anti-corrosion sensors for harsh or chemically aggressive conditions.

  • Model: QYL-U02-S
  • MOQ: 1PCS
  • Payment: Wire transfer/ Credit card/ PayPal
  • Lead Time: 5-7 days
  • OEM/ODM: Available

The split-type ultrasonic level detector comprises a sensor and a converter. The sensor is mounted at the measurement point, while the converter can be placed remotely in a control room or another convenient location, connected to the sensor via a cable.

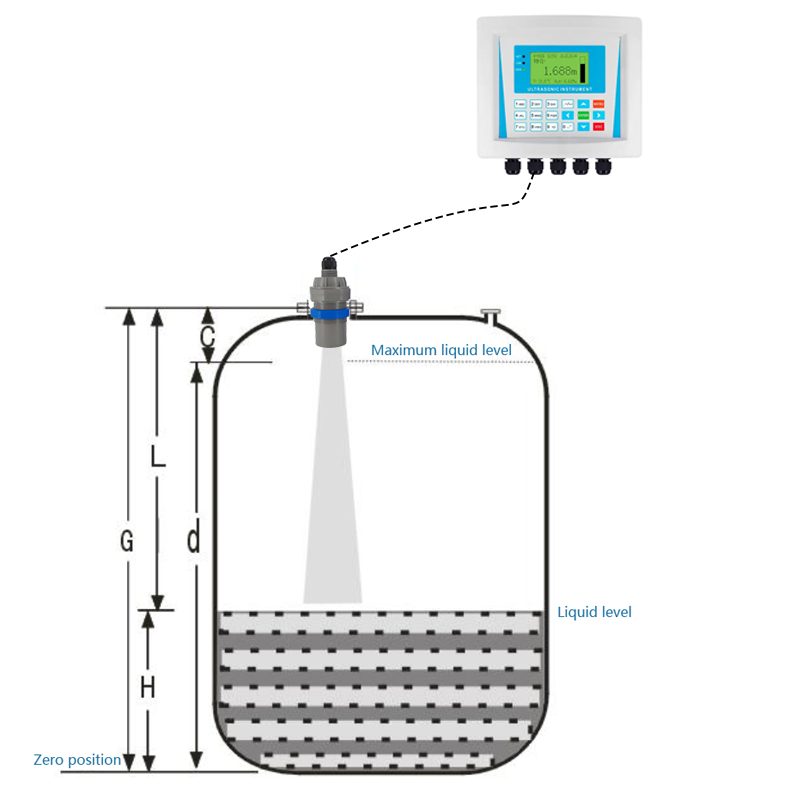

Principle of the WKL-U02-S ultrasonic level detector

Install height G: ( probe to the height of the tank bottom)
Liquid level H: ( level or material level height)
Air distance L: (probe to test surface area)
Blanking distance C: (a small area below the sensor)
Instrument range d: (generally from zero to the highest plane, only linearly corresponding to output P)

Formula：
1、Ranging：L=S*T/2；  S=331.45+0.61*n℃
2、Level：H=G-L
3、Output： P=H/d*16+4 or P=L/d*16+4 （Note: P output current in mA）

  • Strong anti-interference capability: By separating the probe and signal processing unit, the signal processing unit can be located away from areas with high temperatures, high voltages, or strong electromagnetic interference, thereby improving measurement accuracy and reliability.
  • Easy operation: The converter typically features a larger display and more user interfaces, making adjustments and viewing easier for operators.
  • Adaptability: The split design allows for adaptability to harsh measurement environments, such as high temperatures, corrosive gases, or liquids. The probe can be manufactured from specialized materials to withstand these extreme conditions.
Parameter Description
Measuring range 0~20m
Output 4-20MA, RS485, on-off switch
Voltage 24V& 220V
Display Local LCD Display
Pressure -0.2~1bar
Protection level of the sensor IP65 or IP68
Accuracy ±0.5%FS
Blind Zone 0.3-0.8m
Ambient Temperature -20~+60℃
Cable length 10 meters default

Split-type ultrasonic level meters are suitable for large storage tanks, level measurement in complex processes, and level monitoring in high-temperature or highly corrosive environments. They are particularly suitable for applications that require remote operation or need to prevent interference from the on-site environment.
